首頁晶振行業動態 小體積貼片晶振Q22FA23V0013600適用于ISM頻段電臺廣播應用

小體積貼片晶振Q22FA23V0013600適用于ISM頻段電臺廣播應用

來源：http://www.arucbtxo.cn 作者：億金電子 2022年09月26
EPSON晶振發展成立至今成為國際赫赫有名的電子元件制造商,不僅為用戶提供優異的石英晶振,貼片晶振,TCXO晶振,時鐘晶體振蕩器等產品,同時致力于為用戶提供高可靠技術解決方案.為了更好的服務全球用戶,愛普生晶振的生產銷售據點遍布日本,馬來西亞,蘇州,泰國等國家.

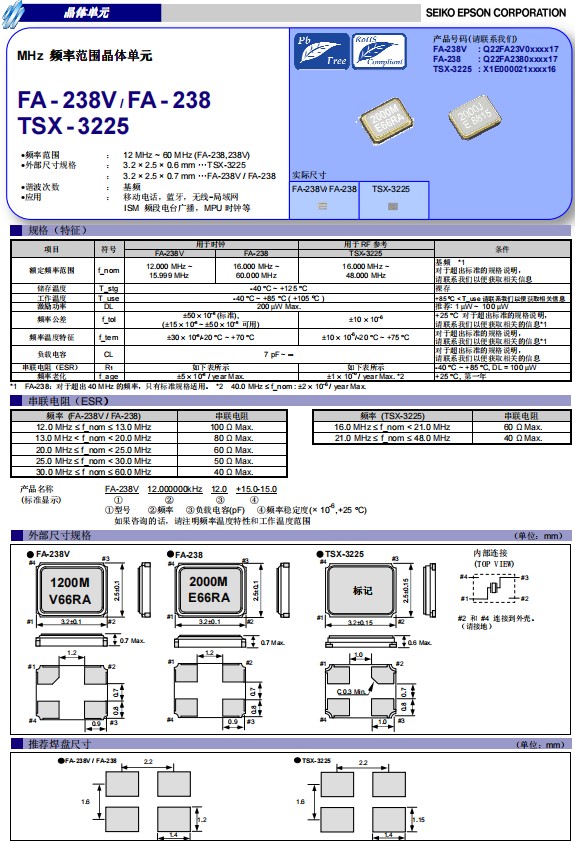

日本進口愛普生晶振FA-238V是一款小體積晶振尺寸3.2x2.5mm四腳貼片晶振，無源晶振，石英晶體諧振器，FA-238V頻率范圍12MHz至15.9999MHz之間，可以在-40℃至+85℃（+105℃）溫度內穩定工作，該產品具有小體積輕薄型，耐熱、耐振、耐沖擊等優良的耐環境特性，被廣泛用于移動通訊，智能手機，平板電腦，汽車電子，移動電話，無線藍牙，ISM頻段電臺廣播，MPU時鐘等.
小體積貼片晶振Q22FA23V0013600適用于ISM頻段電臺廣播應用,Q22FA23V0038500,愛普生晶振
產品編碼 愛普生晶振 型號 頻率 負載電容 精度
Q22FA23V0001200 3.2x2.5x0.7mm FA-238V 13.560000MHz 12pF +/-50ppm
Q22FA23V0001800 3.2x2.5x0.7mm FA-238V 12.288000MHz 12pF +/-50ppm
Q22FA23V0002200 3.2x2.5x0.7mm FA-238V 12.000000MHz 10pF +/-30ppm
Q22FA23V0002600 3.2x2.5x0.7mm FA-238V 13.000000MHz 10pF +/-50ppm
Q22FA23V0002700 3.2x2.5x0.7mm FA-238V 14.745600MHz 20pF +/-50ppm
Q22FA23V0002800 3.2x2.5x0.7mm FA-238V 12.000000MHz 15pF +/-50ppm
Q22FA23V0002900 3.2x2.5x0.7mm FA-238V 13.000000MHz 20pF +/-50ppm
Q22FA23V0003000 3.2x2.5x0.7mm FA-238V 13.000000MHz 20pF +/-30ppm
Q22FA23V0003300 3.2x2.5x0.7mm FA-238V 12.288000MHz 12pF +/-30ppm
Q22FA23V0003700 3.2x2.5x0.7mm FA-238V 14.318180MHz 20pF +/-50ppm
Q22FA23V0004400 3.2x2.5x0.7mm FA-238V 12.000000MHz 20pF +/-50ppm
Q22FA23V0004800 3.2x2.5x0.7mm FA-238V 13.000000MHz 7pF +/-50ppm
Q22FA23V0005200 3.2x2.5x0.7mm FA-238V 13.560000MHz 10pF +/-50ppm
Q22FA23V0006800 3.2x2.5x0.7mm FA-238V 14.318000MHz 12pF +/-50ppm
Q22FA23V0006900 3.2x2.5x0.7mm FA-238V 12.000000MHz 10pF +/-15ppm
Q22FA23V0008200 3.2x2.5x0.7mm FA-238V 14.318180MHz 16pF +/-50ppm
Q22FA23V0008500 3.2x2.5x0.7mm FA-238V 12.288000MHz 8pF +/-50ppm
Q22FA23V0008600 3.2x2.5x0.7mm FA-238V 14.745600MHz 12pF +/-50ppm
Q22FA23V0009500 3.2x2.5x0.7mm FA-238V 12.000000MHz 16pF +/-50ppm
Q22FA23V0010300 3.2x2.5x0.7mm FA-238V 14.318180MHz 12.5pF +/-30ppm
Q22FA23V0010600 3.2x2.5x0.7mm FA-238V 12.000000MHz 11pF +/-30ppm
Q22FA23V0010700 3.2x2.5x0.7mm FA-238V 12.000000MHz 10pF +/-50ppm
Q22FA23V0011400 3.2x2.5x0.7mm FA-238V 14.318180MHz 18pF +/-50ppm
Q22FA23V0011900 3.2x2.5x0.7mm FA-238V 12.500000MHz 16pF +/-50ppm
Q22FA23V0012300 3.2x2.5x0.7mm FA-238V 13.560000MHz 12pF +/-20ppm
Q22FA23V0013100 3.2x2.5x0.7mm FA-238V 12.000000MHz 18pF +/-50ppm
Q22FA23V0013600 3.2x2.5x0.7mm FA-238V 12.000000MHz 8pF +/-50ppm
Q22FA23V0014400 3.2x2.5x0.7mm FA-238V 12.000000MHz 10pF +/-15ppm
Q22FA23V0014900 3.2x2.5x0.7mm FA-238V 12.000000MHz 20pF +/-30ppm
Q22FA23V0015000 3.2x2.5x0.7mm FA-238V 12.000000MHz 10pF +/-10ppm
Q22FA23V0016000 3.2x2.5x0.7mm FA-238V 12.000000MHz 16pF +/-30ppm
Q22FA23V0016200 3.2x2.5x0.7mm FA-238V 12.288000MHz 10pF +/-50ppm
Q22FA23V0016400 3.2x2.5x0.7mm FA-238V 14.318180MHz 9pF +/-50ppm
Q22FA23V0017000 3.2x2.5x0.7mm FA-238V 12.000000MHz 12pF +/-30ppm
Q22FA23V0017800 3.2x2.5x0.7mm FA-238V 13.560000MHz 18pF +/-50ppm

Q22FA23V0017900 3.2x2.5x0.7mm FA-238V 12.500000MHz 10pF +/-50ppm
Q22FA23V0018000 3.2x2.5x0.7mm FA-238V 14.745600MHz 16pF +/-50ppm
Q22FA23V0019200 3.2x2.5x0.7mm FA-238V 12.288000MHz 10pF +/-30ppm
Q22FA23V0019300 3.2x2.5x0.7mm FA-238V 12.000000MHz 12.5pF +/-50ppm
Q22FA23V0019500 3.2x2.5x0.7mm FA-238V 13.000000MHz 9pF +/-20ppm
Q22FA23V0019700 3.2x2.5x0.7mm FA-238V 12.000000MHz 8pF +/-15ppm
Q22FA23V0020500 3.2x2.5x0.7mm FA-238V 14.745600MHz 8pF +/-50ppm
Q22FA23V0021000 3.2x2.5x0.7mm FA-238V 14.745600MHz 18pF +/-50ppm
Q22FA23V0023300 3.2x2.5x0.7mm FA-238V 14.318180MHz 10pF +/-20ppm
Q22FA23V0023500 3.2x2.5x0.7mm FA-238V 12.000000MHz 9pF +/-30ppm
Q22FA23V0023900 3.2x2.5x0.7mm FA-238V 14.318000MHz 10pF +/-50ppm
Q22FA23V0024100 3.2x2.5x0.7mm FA-238V 14.318180MHz 10pF +/-50ppm
Q22FA23V0024500 3.2x2.5x0.7mm FA-238V 14.318000MHz 16pF +/-50ppm
Q22FA23V0024700 3.2x2.5x0.7mm FA-238V 12.000000MHz 10pF +/-20ppm
Q22FA23V0025500 3.2x2.5x0.7mm FA-238V 12.000000MHz 12pF +/-20ppm
Q22FA23V0026600 3.2x2.5x0.7mm FA-238V 13.560000MHz 16pF +/-50ppm
Q22FA23V0026800 3.2x2.5x0.7mm FA-238V 12.288000MHz 16pF +/-50ppm
Q22FA23V0027900 3.2x2.5x0.7mm FA-238V 12.000000MHz 18pF +/-30ppm
Q22FA23V0029100 3.2x2.5x0.7mm FA-238V 14.318180MHz 12pF +/-15ppm
Q22FA23V0030700 3.2x2.5x0.7mm FA-238V 14.318180MHz 8pF +/-30ppm
Q22FA23V0031000 3.2x2.5x0.7mm FA-238V 14.318000MHz 20pF +/-30ppm
Q22FA23V0031400 3.2x2.5x0.7mm FA-238V 14.318180MHz 10pF +/-50ppm
Q22FA23V0032600 3.2x2.5x0.7mm FA-238V 14.318180MHz 12pF +/-10ppm
Q22FA23V0032700 3.2x2.5x0.7mm FA-238V 12.000000MHz 12pF +/-20ppm
Q22FA23V0033200 3.2x2.5x0.7mm FA-238V 14.745600MHz 18pF +/-30ppm
Q22FA23V0035800 3.2x2.5x0.7mm FA-238V 12.000000MHz 7pF +/-30ppm
Q22FA23V0036700 3.2x2.5x0.7mm FA-238V 14.318000MHz 9pF +/-50ppm
Q22FA23V0037200 3.2x2.5x0.7mm FA-238V 12.288000MHz 18pF +/-20ppm
Q22FA23V0037300 3.2x2.5x0.7mm FA-238V 14.745600MHz 16pF +/-50ppm
Q22FA23V0037400 3.2x2.5x0.7mm FA-238V 13.560000MHz 9pF +/-50ppm
Q22FA23V0037500 3.2x2.5x0.7mm FA-238V 12.800000MHz 15pF +/-10ppm
Q22FA23V0037900 3.2x2.5x0.7mm FA-238V 13.300000MHz 10pF +/-50ppm
Q22FA23V0038000 3.2x2.5x0.7mm FA-238V 12.993000MHz 10pF +/-50ppm
Q22FA23V0038500 3.2x2.5x0.7mm FA-238V 12.800000MHz 15pF +/-10ppm
Q22FA23V0039600 3.2x2.5x0.7mm FA-238V 14.745600MHz 7pF +/-50ppm
Q22FA23V0039700 3.2x2.5x0.7mm FA-238V 14.318180MHz 12pF +/-30ppm
Q22FA23V0040000 3.2x2.5x0.7mm FA-238V 12.288000MHz 12pF +/-15ppm
Q22FA23V0040100 3.2x2.5x0.7mm FA-238V 13.500000MHz 10pF +/-15ppm
Q22FA23V0041900 3.2x2.5x0.7mm FA-238V 14.318180MHz 15pF +/-15ppm
Q22FA23V0042500 3.2x2.5x0.7mm FA-238V 12.500000MHz 7pF +/-50ppm
Q22FA23V0042600 3.2x2.5x0.7mm FA-238V 14.745600MHz 10pF +/-50ppm
Q22FA23V0043100 3.2x2.5x0.7mm FA-238V 14.318180MHz 8pF +/-20ppm
Q22FA23V0043200 3.2x2.5x0.7mm FA-238V 12.000000MHz 22pF +/-50ppm
Q22FA23V0043400 3.2x2.5x0.7mm FA-238V 12.800000MHz 15pF +/-50ppm
小體積貼片晶振Q22FA23V0013600適用于ISM頻段電臺廣播應用,Q22FA23V0038500,愛普生晶振
日本EPSON擁有先進的生產設備,追求“省、小、精”的獨特技術,研發制造符合業界需求的石英晶振,貼片晶振,有源晶體振蕩器等產品.愛普生所生產的石英貼片晶振產品,
愛普生品牌的產業遍布全球,即使除了晶振行業,還有愛普生電容,愛普生打印機,愛普生時鐘模塊等產品被大家所熟知,多年來因其高穩定的產品質量成為大家一致認可的品牌.
