溫補晶振即溫度補償晶體振蕩器（TCXO），是通過附加的溫度補償電路使由周圍溫度變化產生的振蕩頻率變化量削減的一種石英晶體振蕩器。
日本進口愛普生晶振TG2520SMN是一款TCXO溫補晶體振蕩器，小體積晶振尺寸2.5x2.0mm有源晶振，四腳貼片晶振，電源電壓1.8V,2.8V,3.0V,3.3V，頻率范圍10MHz至55MHz，具有超小型，輕薄型，低電源電壓，低抖動，低功耗，低損耗，低耗能，低電平，低相位噪聲等特點，被廣泛應用于5G通訊設備、工業控制、車載、消費電子、光電技術及各種變頻調速設備等通訊設備。
TG2520SMN專用于5G通訊設備,X1G005421021227,溫補晶體振蕩器

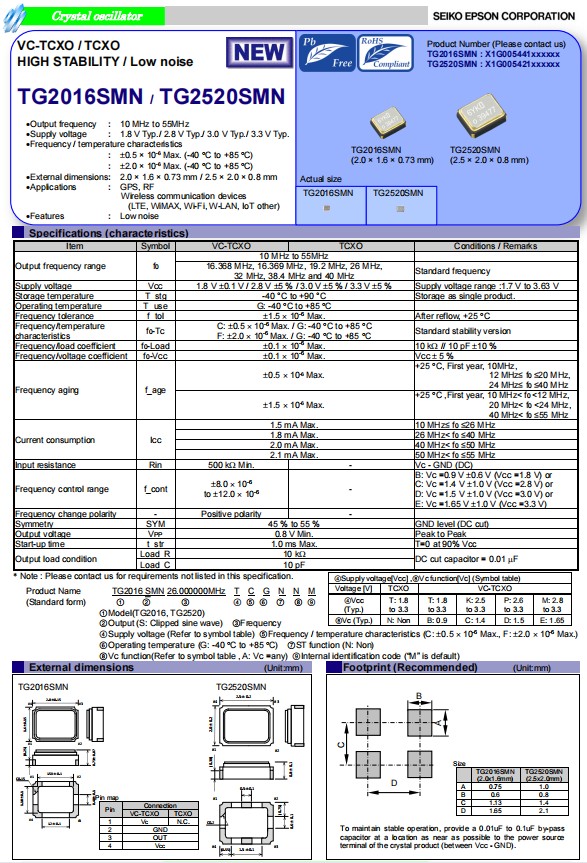

.JPG)
TG2520SMN專用于5G通訊設備,X1G005421021227,溫補晶體振蕩器
削波正玄波(Clipped Sine Wave)是有源晶振輸出方式的一種,相比方波的諧波分量少很多,但驅動能力較弱,在負載10K/10PF時Vp-p為0.8Vmin.通常為SMD7050,SMD5032,SMD3225等封裝的表貼溫補晶振使用的輸出波形.當然,有源晶振還有CMOS,TTL,ECL,LVDS,正玄波等輸出方式,這些輸出邏輯方式也各有優缺點,至于如何利用它們我們卻是不得而知.所以日本愛普生晶振就推出了相關的技術支持文檔,明確指出應當如何在電路設計中應用削頂正玄波.
日本進口愛普生晶振TG2520SMN是一款TCXO溫補晶體振蕩器，小體積晶振尺寸2.5x2.0mm有源晶振，四腳貼片晶振，電源電壓1.8V,2.8V,3.0V,3.3V，頻率范圍10MHz至55MHz，具有超小型，輕薄型，低電源電壓，低抖動，低功耗，低損耗，低耗能，低電平，低相位噪聲等特點，被廣泛應用于5G通訊設備、工業控制、車載、消費電子、光電技術及各種變頻調速設備等通訊設備。
TG2520SMN專用于5G通訊設備,X1G005421021227,溫補晶體振蕩器
| 產品編碼 |
 石英晶振 |
 頻率 |
 尺寸 |
 輸出波 |
| X1G005421002927 | TG2520SMN | 19.200000MHz | 2.50x2.00x0.80mm | Clippedsinewave |
| X1G005421003027 | TG2520SMN | 12.000000MHz | 2.50x2.00x0.80mm | Clippedsinewave |
| X1G005421003727 | TG2520SMN | 16.384000MHz | 2.50x2.00x0.80mm | Clippedsinewave |
| X1G005421003827 | TG2520SMN | 16.384000MHz | 2.50x2.00x0.80mm | Clippedsinewave |
| X1G005421020127 | TG2520SMN | 16.368000MHz | 2.50x2.00x0.80mm | Clippedsinewave |
| X1G005421020227 | TG2520SMN | 16.369000MHz | 2.50x2.00x0.80mm | Clippedsinewave |
| X1G005421020327 | TG2520SMN | 19.200000MHz | 2.50x2.00x0.80mm | Clippedsinewave |
| X1G005421020427 | TG2520SMN | 26.000000MHz | 2.50x2.00x0.80mm | Clippedsinewave |
| X1G005421020527 | TG2520SMN | 32.000000MHz | 2.50x2.00x0.80mm | Clippedsinewave |
| X1G005421020627 | TG2520SMN | 38.400000MHz | 2.50x2.00x0.80mm | Clippedsinewave |
| X1G005421020727 | TG2520SMN | 40.000000MHz | 2.50x2.00x0.80mm | Clippedsinewave |
| X1G005421020827 | TG2520SMN | 16.000000MHz | 2.50x2.00x0.80mm | TCXO晶振 |
| X1G005421021127 | TG2520SMN | 20.000000MHz | 2.50x2.00x0.80mm | Clippedsinewave |
| X1G005421021227 | TG2520SMN | 24.000000MHz | 2.50x2.00x0.80mm | Clippedsinewave |
| X1G005421021327 | TG2520SMN | 25.000000MHz | 2.50x2.00x0.80mm | Clippedsinewave |
| X1G005421021427 | TG2520SMN | 27.000000MHz | 2.50x2.00x0.80mm | Clippedsinewave |
| X1G005421021527 | TG2520SMN | 30.000000MHz | 2.50x2.00x0.80mm | Clippedsinewave |
| X1G005421021627 | TG2520SMN | 48.000000MHz | 2.50x2.00x0.80mm | Clippedsinewave |
| X1G005421022027 | TG2520SMN | 52.000000MHz | 2.50x2.00x0.80mm | Clippedsinewave |
| X1G005421022127 | TG2520SMN | 27.600000MHz | 2.50x2.00x0.80mm | Clippedsinewave |
| X1G005421022227 | TG2520SMN | 50.000000MHz | 2.50x2.00x0.80mm | Clippedsinewave |
| X1G005421030127 | TG2520SMN | 16.368000MHz | 2.50x2.00x0.80mm | Clippedsinewave |
| X1G005421030227 | TG2520SMN | 16.369000MHz | 2.50x2.00x0.80mm | Clippedsinewave |
| X1G005421030327 | TG2520SMN | 19.200000MHz | 2.50x2.00x0.80mm | Clippedsinewave |
| X1G005421030427 | TG2520SMN | 26.000000MHz | 2.50x2.00x0.80mm | Clippedsinewave |
| X1G005421030527 | TG2520SMN | 32.000000MHz | 2.50x2.00x0.80mm | Clippedsinewave |
| X1G005421030627 | TG2520SMN | 38.400000MHz | 2.50x2.00x0.80mm | Clippedsinewave |
| X1G005421030727 | TG2520SMN | 40.000000MHz | 2.50x2.00x0.80mm | Clippedsinewave |
| X1G005421030827 | TG2520SMN | 16.000000MHz | 2.50x2.00x0.80mm | Clippedsinewave |
| X1G005421031127 | TG2520SMN | 20.000000MHz | 2.50x2.00x0.80mm | Clippedsinewave |
| X1G005421031227 | TG2520SMN | 24.000000MHz | 2.50x2.00x0.80mm | Clippedsinewave |
| X1G005421031327 | TG2520SMN | 25.000000MHz | 2.50x2.00x0.80mm | Clippedsinewave |
| X1G005421031427 | TG2520SMN | 27.000000MHz | 2.50x2.00x0.80mm | Clippedsinewave |
| X1G005421031527 | TG2520SMN | 30.000000MHz | 2.50x2.00x0.80mm | Clippedsinewave |
