首頁晶振行業動態 SG3225VAN差分晶振X1G004241002600適用于工業自動化控制系統

SG3225VAN差分晶振X1G004241002600適用于工業自動化控制系統

來源：http://www.arucbtxo.cn 作者：億金電子 2022年10月14

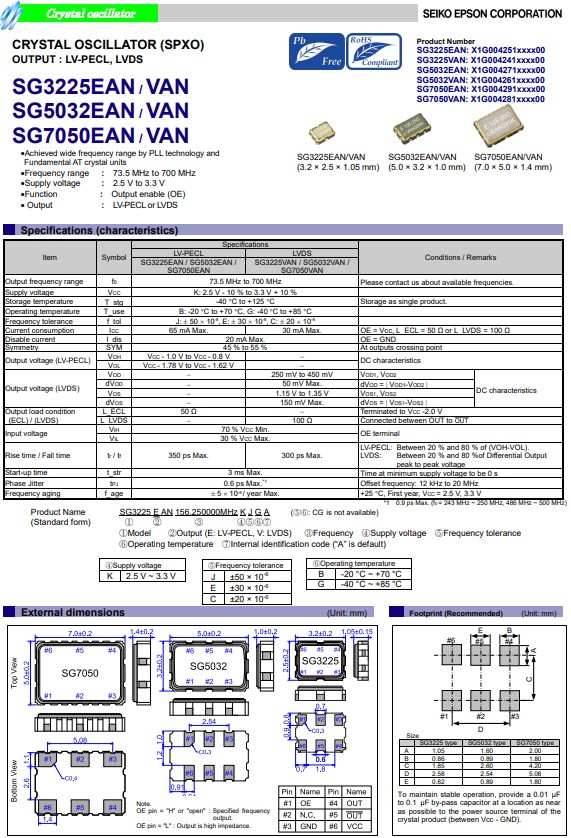

近年來，對小型化、多功能網絡設備的需求不斷增加，愛普生推出SG3225VAN晶振是一款小體積尺寸3.2x2.5mm晶體振蕩器，差分晶振，電源電壓為2.5V至3.3V，輸出頻率73.5MHz至700MHz，具有低電源電壓，低功耗，低抖動，低耗能，低損耗，小型化，高穩定性等優點，在手持攜帶設備、可穿戴式設備以及物聯網等網絡設備中具有廣闊的市場前景，可有效延長設備使用壽命、縮短產品開發周期。目前市場主流差分晶振都是6腳貼片晶振封裝，頻率比普通晶振相比較高，常用的頻率有:74.25MHz,100MHz,125MHz,148.5MHz,150MHz,200MHz等。適用于10GbE、40GbE、100GbE超寬頻以太網絡，醫療、測試測量、消費電子、工業自動化等領域。
SG3225VAN差分晶振X1G004241002600適用于工業自動化控制系統,X1G004241001000,低耗能晶振
產品編碼 型號 頻率 石英晶振 輸出波 電源電壓 工作溫度
X1G004241000100 SG3225VAN 125.000000MHz 3.20x2.50x1.20mm LVDS 2.250 to 3.630V -40 to 85°C
X1G004241000400 SG3225VAN 100.000000MHz 3.20x2.50x1.20mm LVDS 2.250 to 3.630V -40 to 85°C
X1G004241000500 SG3225VAN 200.000000MHz 3.20x2.50x1.20mm LVDS 2.250 to 3.630V -40 to 85°C
X1G004241000600 SG3225VAN 400.000000MHz 3.20x2.50x1.20mm LVDS 2.250 to 3.630V -40 to 85°C
X1G004241000800 SG3225VAN 212.500000MHz 3.20x2.50x1.20mm LVDS 2.250 to 3.630V -40 to 85°C
X1G004241001000 SG3225VAN 148.500000MHz 3.20x2.50x1.20mm LVDS 2.250 to 3.630V -40 to 85°C
X1G004241001200 SG3225VAN 150.000000MHz 3.20x2.50x1.20mm LVDS 2.250 to 3.630V -40 to 85°C
X1G004241001400 SG3225VAN 156.250000MHz 3.20x2.50x1.20mm LVDS 2.250 to 3.630V -40 to 85°C
X1G004241002000 SG3225VAN 125.000000MHz 3.20x2.50x1.20mm LVDS 2.250 to 3.630V -40 to 85°C
X1G004241002300 SG3225VAN 100.000000MHz 3.20x2.50x1.20mm LVDS 2.250 to 3.630V -40 to 85°C
X1G004241002400 SG3225VAN 200.000000MHz 3.20x2.50x1.20mm LVDS 2.250 to 3.630V -40 to 85°C
X1G004241002500 SG3225VAN 400.000000MHz 3.20x2.50x1.20mm LVDS 2.250 to 3.630V -40 to 85°C
X1G004241002600 SG3225VAN 106.250000MHz 3.20x2.50x1.20mm LVDS 2.250 to 3.630V -40 to 85°C
X1G004241002800 SG3225VAN 74.250000MHz 3.20x2.50x1.20mm LVDS 2.250 to 3.630V -40 to 85°C
X1G004241002900 SG3225VAN 148.500000MHz 3.20x2.50x1.20mm LVDS 2.250 to 3.630V -40 to 85°C
X1G004241003100 SG3225VAN 150.000000MHz 3.20x2.50x1.20mm LVDS 2.250 to 3.630V -40 to 85°C
X1G004241003200 SG3225VAN 155.520000MHz 3.20x2.50x1.20mm LVDS 2.250 to 3.630V -40 to 85°C
X1G004241003300 SG3225VAN 156.250000MHz 3.20x2.50x1.20mm LVDS 2.250 to 3.630V -40 to 85°C
X1G004241003400 SG3225VAN 312.500000MHz 3.20x2.50x1.20mm LVDS 2.250 to 3.630V -40 to 85°C

X1G004241003900 SG3225VAN 125.000000MHz 3.20x2.50x1.20mm LVDS 2.250 to 3.630V -20 to 70°C
X1G004241004200 SG3225VAN 100.000000MHz 3.20x2.50x1.20mm LVDS 2.250 to 3.630V -20 to 70°C
X1G004241005200 SG3225VAN 156.250000MHz 3.20x2.50x1.20mm LVDS 2.250 to 3.630V -20 to 70°C
X1G004241006100 SG3225VAN 100.000000MHz 3.20x2.50x1.20mm LVDS 2.250 to 3.630V -20 to 70°C
X1G004241006200 SG3225VAN 200.000000MHz 3.20x2.50x1.20mm LVDS 2.250 to 3.630V -20 to 70°C
X1G004241006500 SG3225VAN 212.500000MHz 3.20x2.50x1.20mm LVDS 2.250 to 3.630V -20 to 70°C
X1G004241006900 SG3225VAN 150.000000MHz 3.20x2.50x1.20mm LVDS 2.250 to 3.630V -20 to 70°C
X1G004241007100 SG3225VAN 156.250000MHz 3.20x2.50x1.20mm LVDS 2.250 to 3.630V -20 to 70°C
X1G004241010000 SG3225VAN 133.333333MHz 3.20x2.50x1.20mm LVDS 2.250 to 3.630V -20 to 70°C
X1G004241010300 SG3225VAN 250.000000MHz 3.20x2.50x1.20mm LVDS 2.250 to 3.630V -40 to 85°C
X1G004241010500 SG3225VAN 80.000000MHz 3.20x2.50x1.20mm LVDS 2.250 to 3.630V -40 to 85°C
X1G004241010800 SG3225VAN 297.000000MHz 3.20x2.50x1.20mm LVDS 2.250 to 3.630V -40 to 85°C
X1G004241010900 SG3225VAN 133.330000MHz 3.20x2.50x1.20mm LVDS 2.250 to 3.630V -40 to 85°C
X1G004241011300 SG3225VAN 125.003125MHz 3.20x2.50x1.20mm LVDS 2.250 to 3.630V -40 to 85°C
X1G004241011700 SG3225VAN 126.000000MHz 3.20x2.50x1.20mm LVDS 2.250 to 3.630V -40 to 85°C
X1G004241012000 SG3225VAN 322.265625MHz 3.20x2.50x1.20mm LVDS 2.250 to 3.630V -40 to 85°C
X1G004241012300 SG3225VAN 90.000000MHz 3.20x2.50x1.20mm LVDS 2.250 to 3.630V -20 to 70°C
X1G004241012400 SG3225VAN 135.000000MHz 3.20x2.50x1.20mm LVDS 2.250 to 3.630V -40 to 85°C
X1G004241012500 SG3225VAN 76.000000MHz 3.20x2.50x1.20mm LVDS 2.250 to 3.630V -40 to 85°C
X1G004241012600 SG3225VAN 360.000000MHz 3.20x2.50x1.20mm LVDS 2.250 to 3.630V -40 to 85°C
X1G004241012700 SG3225VAN 644.531250MHz 3.20x2.50x1.20mm LVDS 2.250 to 3.630V -20 to 70°C
X1G004241012900 SG3225VAN 322.265625MHz 3.20x2.50x1.20mm LVDS 2.250 to 3.630V -20 to 70°C
X1G004241013000 SG3225VAN 115.200000MHz 3.20x2.50x1.20mm LVDS 2.250 to 3.630V -40 to 85°C
SG3225VAN差分晶振X1G004241002600適用于工業自動化控制系統,X1G004241001000,低耗能晶振
愛普生SG3225VAN晶振結合低抖動PLL技術和內置AT晶體單元，可產生穩定的輸出信號；頻率偏移誤差*低±20ppm，*大相位抖動不超過0.6ps，非常適合對時鐘信號完整性有嚴格要求的系統。考慮元件老化的影響，其頻率老化率僅為±5ppm/年，大大提高了元件的使用壽命。SG3225VAN石英晶體振蕩器支持LVDS標準差分信號，增強了輸出信號的抗干擾能力，可作為標準模塊在電路中直接應用。
