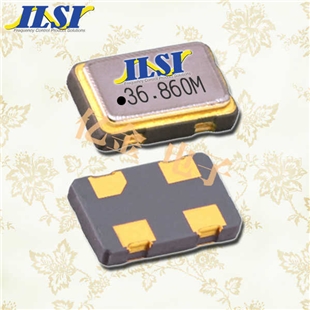

美國ILSI晶振|ISM42-3A6-32.000000 MHz|低相位抖動晶振

  • 頻率：32MHz
  • 尺寸：5.0×3.2mm
  • 應　用： 美國ILSI晶振,ISM42振蕩器,貼片石英晶振,ISM42-3A6-32.000000 MHz晶振,有源晶振,SMD晶振,LVCMOS輸出晶振,5032mm晶振,四腳封裝晶振,頻率32MHz,電壓2.5V,工作溫度-20~70°C,頻率穩定性25ppm,耐老化晶振,低相位抖動晶振,...
  • RoHS RoHS2


美國ILSI晶振|ISM42-3A6-32.000000 MHz|低相位抖動晶振,美國ILSI晶振,ISM42振蕩器,貼片石英晶振,ISM42-3A6-32.000000 MHz晶振,有源晶振,SMD晶振,LVCMOS輸出晶振,5032mm晶振,四腳封裝晶振,頻率32MHz,電壓2.5V,工作溫度-20~70°C,頻率穩定性25ppm,耐老化晶振,低相位抖動晶振,高可靠性晶振,電纜調制解調器晶振,音頻系統晶振,專業視頻設備晶振,以太網晶振.
美國ILSI晶振|ISM42-3A6-32.000000 MHz|低相位抖動晶振特點
●頻率范圍:20.000MHz至50.000MHZ
●電源電壓，1.8Vdc, 2.5Vdc, 3.3Vdc
●引腳1上的三態功能
●超低相位抖動和相位噪聲
●行業標準3.5mm x 5.0mm封裝
●LVCMOS輸出
●符合RoHS和REACH標準

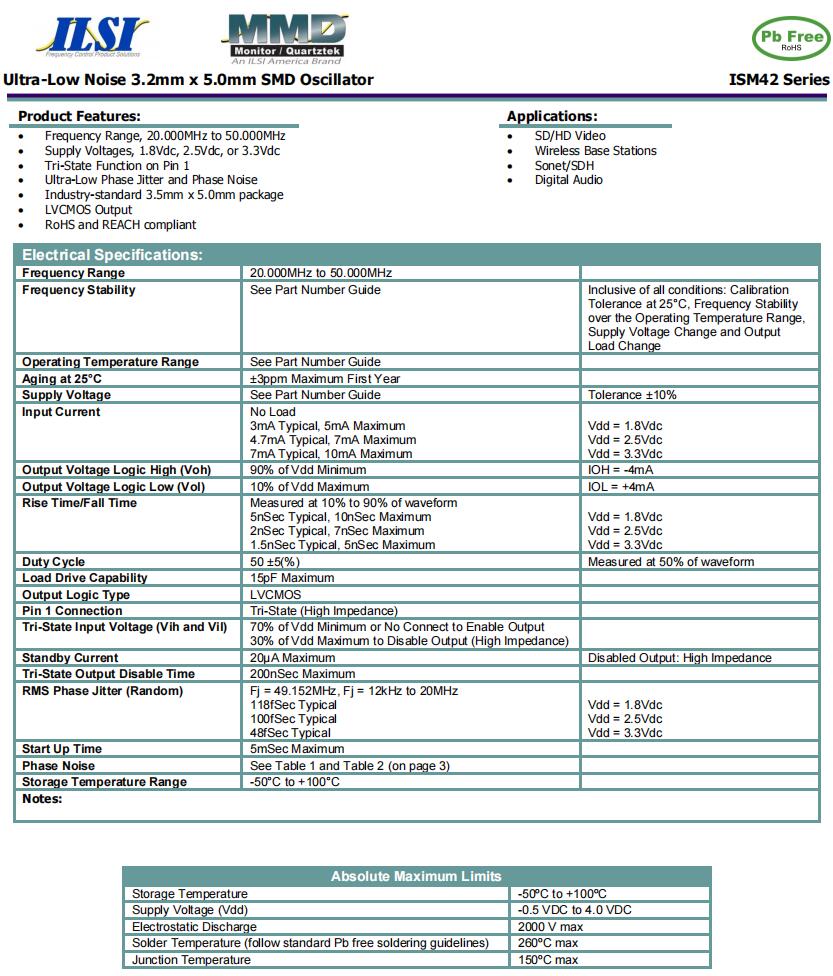

美國ILSI晶振|ISM42-3A6-32.000000 MHz|低相位抖動晶振規格表
Electrical Specifications:
Frequency Range 32MHz
Frequency Stability 土25 ppm
Operating Temperature Range -20°C to +70°C
Aging at 25°c +3ppm Maximum First Year
Supply Voltage 2.5V Tolerance +10%
Input Current No Load
3mA Typical, 5mA Maximum
4.7mA Typical, 7mA Maximum
7mA Typical, 10mA Maximum
Vdd= 1.8Vdc
Vdd= 2.5Vdc
Vdd = 3.3Vdc
Output Voltage Logic High(Voh) 90% of Vdd Minimum IOH=-4mA
Output Voltage Logic Low(Vol) 10% of Vdd Maximum IOL=+4mA
Rise Time/Fall Time Measured at 10% to 90% of waveform
5nSec Typical, 10nSec Maximum
2nSec Typical, 7nSec Maximum
1.5nSec Typical, 5nSec Maximum
Vdd= 1.8Vdc
Vdd = 2.5Vdc
Vdd= 3.3Vdc
Duty Cycle 50+5(%) Measured at 50% of wavefomm
Load Drive Capability 15pF Maximum
Output Logic Type LVCMOS
Pin 1 Connection Tri-State (High lmpedance)
Tri-State Input Voltage (Vih and Vil) 70% of Vdd Minimum or No Connect to Enable Output
30% of Vdd Maximum to Disable Output (High lmpedance)
Standby Current 20uA Maximum Disabled Output High lmpedance
Tri-State Output Disable Time 200nSec Maximum
RMS Phase Jitter(Random) Fi= 49.152MHz.Fi= 12kHz to 20MHz
118fSec Typical
100fSec Typical
48fSec Typical
Vdd= 1.8Vdc
Vdd = 2.5Vdc
Vdd= 3.3Vdc
Start Up Time 5mSec Maximum
Phase Noise See Table 1 and Table 2 (on Page 3)
Storage Temperature Range -55°C to +100°C

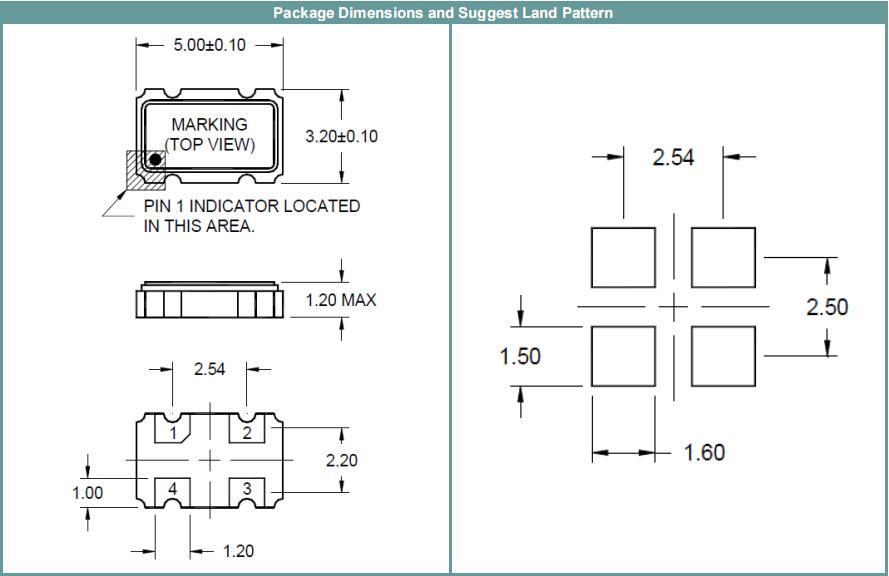

美國ILSI晶振|ISM42-3A6-32.000000 MHz|低相位抖動晶振尺寸圖
