DSA6101HA1B-100.0000B-Microchip品牌-6G以太網晶振
- 頻率：100MHz
- 尺寸：1.6×1.2mm
- 應 用： Microchip晶振,DSA61XX進口晶振,有源晶振,DSA6101HA1B-100.0000B晶振,1612mm晶振,四腳貼片晶振,石英晶體振蕩器,頻率100MHz,電壓3.3V,工作溫度-40~125°C,頻率穩定性50ppm,6G以太網晶振,超小型晶振,抗振動晶振,抗沖擊晶...
-
-
DSA6101HA1B-100.0000B-Microchip品牌-6G以太網晶振,Microchip晶振,DSA61XX進口晶振,有源晶振,DSA6101HA1B-100.0000B晶振,1612mm晶振,四腳貼片晶振,石英晶體振蕩器,頻率100MHz,電壓3.3V,工作溫度-40~125°C,頻率穩定性50ppm,結合了行業領先的低功耗和超小型封裝,具有卓越的頻率穩定性和溫度抖動性能,6G以太網晶振,是汽車應用中作為時鐘參考的絕佳選擇.
DSA6101HA1B-100.0000B-Microchip品牌-6G以太網晶振特點：
•汽車AEC-Q100合格
•寬頻率范圍:3.5kHz至100 MHz
•超低功耗: 3mA/1µA(活動/備用)
•超小足跡
-1.6 mm x 1.2 mm VFLGA
- 2.0 mm x 1.6 mm VFLGA
- 2.5 mm × 2.0 mm VLGA
- 3.2 mm x 2.5 mm VDFN
- 5.0 mm x 3.2 mm VDFN
- 7.0 mm x 5.0 mm VDFN
•頻率選擇輸入支持兩個預定義的頻率
•高穩定性：±20 ppm，±25 ppm，±50 ppm
•寬溫度范圍
-汽車等級1：-40°C~+125°C
-汽車等級2：-40°C~105°C
-汽車等級3:- 40℃~ +85℃
•卓越的抗沖擊和抗振動能力
-符合MIL-STD-883標準
•高可靠性
- MTF比石英振蕩器好20倍
•電源范圍1.71V至3.63V
•樣品交貨時間短:<1周
•無鉛和符合RoHS標準
DSA6101HA1B-100.0000B-Microchip品牌-6G以太網晶振規格表
| 項目 | 規格說明 | 條件 |
| 額定頻率 | 100MHz | 請聯系我們以便獲取其它可用頻率的相關信息 |
| 電源電壓 | 3.3V | |
| 儲存溫度 | -55℃~+150℃ | 裸存 |
| 工作溫度 | -40℃~ +125℃ | |
| 頻率穩定度 | ±50ppm | 包括由初始公差、溫度和電源電壓引起的頻率變化 |
| 老化 | ±5ppm | 1st year @ +25°C |
| 電流 | 1.5µA |
VDD = 3.3V
|
| 輸出邏輯電平高（VOH） |
0.8 x VDD Min
|
Output logic high, I = 3 mA,
|
| 輸出邏輯電平低（VOL） | 0.2 x VDD Max |
Output Logic Low, I = –3 mA,
|
| 輸出上升下降時間 | 1.2ns Max |
DSA61x1，Std Drive,
20% to 80%，CL = 10 pF
|
| 占空比 | 45%~55% | |
| 輸入邏輯電平高（VIH） | 0.7×VDD Min |
Input logic high
|
| 輸入邏輯電平低（VIL） | 0.3x VDD Max |
Input logic low
|
| 起始時間 | 1.5ms Max |
From 90% VDD to valid clock
output, T = 25°C
|
| 周期抖動 | 7psRMS |
FOUT =27 MHz，VDD =2.5V/3.3V
|
| 周期對周期抖動 |
60psRMS
|
FOUT =27 MHz ，VDD =2.5V/3.3V
|
.jpg)

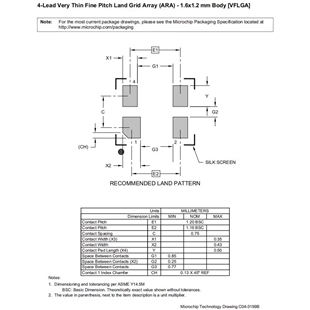

DSA6101HA1B-100.0000B-Microchip品牌-6G以太網晶振尺寸圖
| 原廠代碼 | 晶振品牌 | 型號 | 頻率 | 電壓 | 尺寸 |
| DSC1124CI5-100.0000 | Microchip Technology | DSC1124 | 100MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1104BE2-100.0000 | Microchip Technology | DSC1104 | 100MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1124CI2-156.2500 | Microchip Technology | DSC1124 | 156.25MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1124CI5-100.0000T | Microchip Technology | DSC1124 | 100MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1124CI5-100.0000T | Microchip Technology | DSC1124 | 100MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1124CI5-100.0000T | Microchip Technology | DSC1124 | 100MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1104CI5-125.0000 | Microchip Technology | DSC1104 | 125MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1124CI1-156.2500TA | Microchip Technology | DSC1124 | 156.25MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1124CI1-156.2500TA | Microchip Technology | DSC1124 | 156.25MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1124CI1-156.2500TA | Microchip Technology | DSC1124 | 156.25MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1124CE1-010.2400 | Microchip Technology | DSC1124 | 10.24MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1124BI1-100.0000 | Microchip Technology | DSC1124 | 100MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1124NE1-100.0000 | Microchip Technology | DSC1124 | 100MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1124BI2-100.0000 | Microchip Technology | DSC1124 | 100MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1124CI2-100.0000 | Microchip Technology | DSC1124 | 100MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1124CI1-156.2500 | Microchip Technology | DSC1124 | 156.25MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1124BI2-125.0000 | Microchip Technology | DSC1124 | 125MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1124CE1-010.2400T | Microchip Technology | DSC1124 | 10.24MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1124BE2-100.0000T | Microchip Technology | DSC1124 | 100MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1124BI1-100.0000T | Microchip Technology | DSC1124 | 100MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1124BE2-100.0000 | Microchip Technology | DSC1124 | 100MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1124CI1-156.2500T | Microchip Technology | DSC1124 | 156.25MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1104BE2-100.0000T | Microchip Technology | DSC1104 | 100MHz | 2.25 V ~ 3.6V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1104DI1-100.0000T | Microchip Technology | DSC1104 | 100MHz | 2.25 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1104DI1-156.2500T | Microchip Technology | DSC1104 | 156.25MHz | 2.25 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1104DI1-100.0000 | Microchip Technology | DSC1104 | 100MHz | 2.25 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1104DI1-156.2500 | Microchip Technology | DSC1104 | 156.25MHz | 2.25 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1124NI1-100.0000 | Microchip Technology | DSC1124 | 100MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1124NI1-100.0000T | Microchip Technology | DSC1124 | 100MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1124BI2-100.0000T | Microchip Technology | DSC1124 | 100MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1124BI2-125.0000T | Microchip Technology | DSC1124 | 125MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1124BI2-156.2500T | Microchip Technology | DSC1124 | 156.25MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1124CI2-100.0000T | Microchip Technology | DSC1124 | 100MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1124NE1-100.0000T | Microchip Technology | DSC1124 | 100MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1124CI2-200.0000 | Microchip Technology | DSC1124 | 200MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1124NI1-156.2500 | Microchip Technology | DSC1124 | 156.25MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1124NI1-156.2500T | Microchip Technology | DSC1124 | 156.25MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1104AI2-100.0000 | Microchip Technology | DSC1104 | 100MHz | 2.25 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1124CI2-156.2500T | Microchip Technology | DSC1124 | 156.25MHz | 2.25 V ~ 3.6V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1124CI5-156.2500T | Microchip Technology | DSC1124 | 156.25MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1124CI5-156.2500 | Microchip Technology | DSC1124 | 156.25MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1104CI5-125.0000T | Microchip Technology | DSC1104 | 125MHz | 2.25 V ~ 3.6V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1104BI5-100.0000T | Microchip Technology | DSC1104 | 100MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1104BI5-100.0000 | Microchip Technology | DSC1104 | 100MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1124CL2-100.0000T | Microchip Technology | DSC1124 | 100MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1124CL2-200.0000T | Microchip Technology | DSC1124 | 200MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1124CL2-100.0000 | Microchip Technology | DSC1124 | 100MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1124CL2-200.0000 | Microchip Technology | DSC1124 | 200MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1124BI5-100.0000T | Microchip Technology | DSC1124 | 100MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1124BI5-100.0000 | Microchip Technology | DSC1124 | 100MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1124CE1-156.2500 | Microchip Technology | DSC1124 | 156.25MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1124NL2-100.0000T | Microchip Technology | DSC1124 | 100MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1104NI2-100.0000 | Microchip Technology | DSC1104 | 100MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1104NI2-100.0000T | Microchip Technology | DSC1104 | 100MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1104DL5-040.0000 | Microchip Technology | DSC1104 | 40MHz | 2.25 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1104DL5-040.0000T | Microchip Technology | DSC1104 | 40MHz | 2.25 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1124NL2-100.0000 | Microchip Technology | DSC1124 | 100MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1124AI1-100.0000T | Microchip Technology | DSC1124 | 100MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1124AL2-100.0000T | Microchip Technology | DSC1124 | 100MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1124CI2-048.0000T | Microchip Technology | DSC1124 | 48MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1124CI2-200.0000T | Microchip Technology | DSC1124 | 200MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1104CE1-100.0000 | Microchip Technology | DSC1104 | 100MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1124AI1-100.0000 | Microchip Technology | DSC1124 | 100MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1124AL2-100.0000 | Microchip Technology | DSC1124 | 100MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1124BI2-156.2500 | Microchip Technology | DSC1124 | 156.25MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1124DI2-100.0050 | Microchip Technology | DSC1124 | 100.005MHz | 2.25 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1104DE1-100.0000T | Microchip Technology | DSC1104 | 100MHz | 2.25 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1104DE1-125.0000T | Microchip Technology | DSC1104 | 125MHz | 2.25 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1124AI2-100.0000T | Microchip Technology | DSC1124 | 100MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1124BE1-100.0000T | Microchip Technology | DSC1124 | 100MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1124BE1-125.0000T | Microchip Technology | DSC1124 | 125MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1124CE1-050.0000T | Microchip Technology | DSC1124 | 50MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1124CE1-100.0000T | Microchip Technology | DSC1124 | 100MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1124CI5-156.2422T | Microchip Technology | DSC1124 | 156.2422MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1124CI5-156.2578T | Microchip Technology | DSC1124 | 156.2578MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1124DE1-100.0000T | Microchip Technology | DSC1124 | 100MHz | 2.25 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1124DE1-125.0000T | Microchip Technology | DSC1124 | 125MHz | 2.25 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1104DE1-100.0000 | Microchip Technology | DSC1104 | 100MHz | 2.25 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1104DE1-125.0000 | Microchip Technology | DSC1104 | 125MHz | 2.25 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1124AI2-100.0000 | Microchip Technology | DSC1124 | 100MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1124BE1-100.0000 | Microchip Technology | DSC1124 | 100MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1124BE1-125.0000 | Microchip Technology | DSC1124 | 125MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1124CE1-050.0000 | Microchip Technology | DSC1124 | 50MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1124CE1-100.0000 | Microchip Technology | DSC1124 | 100MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1124CI5-156.2422 | Microchip Technology | DSC1124 | 156.2422MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1124CI5-156.2578 | Microchip Technology | DSC1124 | 156.2578MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1124DE1-100.0000 | Microchip Technology | DSC1124 | 100MHz | 2.25 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1124DE1-125.0000 | Microchip Technology | DSC1124 | 125MHz | 2.25 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1104BE1-156.2500 | Microchip Technology | DSC1104 | 156.25MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1104BE1-156.2500T | Microchip Technology | DSC1104 | 156.25MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1104CI2-100.0000 | Microchip Technology | DSC1104 | 100MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1104CI2-100.0000T | Microchip Technology | DSC1104 | 100MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1104CI5-100.0000 | Microchip Technology | DSC1104 | 100MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1104CI5-100.0000T | Microchip Technology | DSC1104 | 100MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1104DI5-147.4560 | Microchip Technology | DSC1104 | 147.456MHz | 2.25 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1104DI5-147.4560T | Microchip Technology | DSC1104 | 147.456MHz | 2.25 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1124BE1-156.2500 | Microchip Technology | DSC1124 | 156.25MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1124BE1-156.2500T | Microchip Technology | DSC1124 | 156.25MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1124BI5-148.3516 | Microchip Technology | DSC1124 | 148.3516MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1124BI5-148.3516T | Microchip Technology | DSC1124 | 148.3516MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1124BI5-148.5000 | Microchip Technology | DSC1124 | 148.5MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1124BI5-148.5000T | Microchip Technology | DSC1124 | 148.5MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
