OV-7605-C9-T1-20ppm-TA-QM|植入式醫療設備專用晶振|32.768KHz晶振
- 頻率：32.768KHz
- 尺寸：1.6×1.0mm
- 應 用： 瑞士微晶晶振,OV-7605-C9石英晶體振蕩器,OV-7605-C9-T1-20ppm-TA-QM晶振,32.768K晶振,1610mm晶振,超小型晶振,四腳SMD晶振,電壓3.3V,工作溫度-40~85°C,耐高溫晶振,無鉛環保晶振,植入式醫療設備專用晶振,起搏器晶振,除...
-
-
.jpg)
OV-7605-C9-T1-20ppm-TA-QM|植入式醫療設備專用晶振|32.768KHz晶振 ,瑞士微晶晶振,OV-7605-C9石英晶體振蕩器,OV-7605-C9-T1-20ppm-TA-QM晶振,32.768K晶振,1610mm晶振,超小型晶振,四腳SMD晶振,電壓3.3V,工作溫度-40~85°C,耐高溫晶振,無鉛環保晶振,植入式醫療設備專用晶振,起搏器晶振,除顫器晶振,神經刺激器晶振, 心臟監護設備晶振.

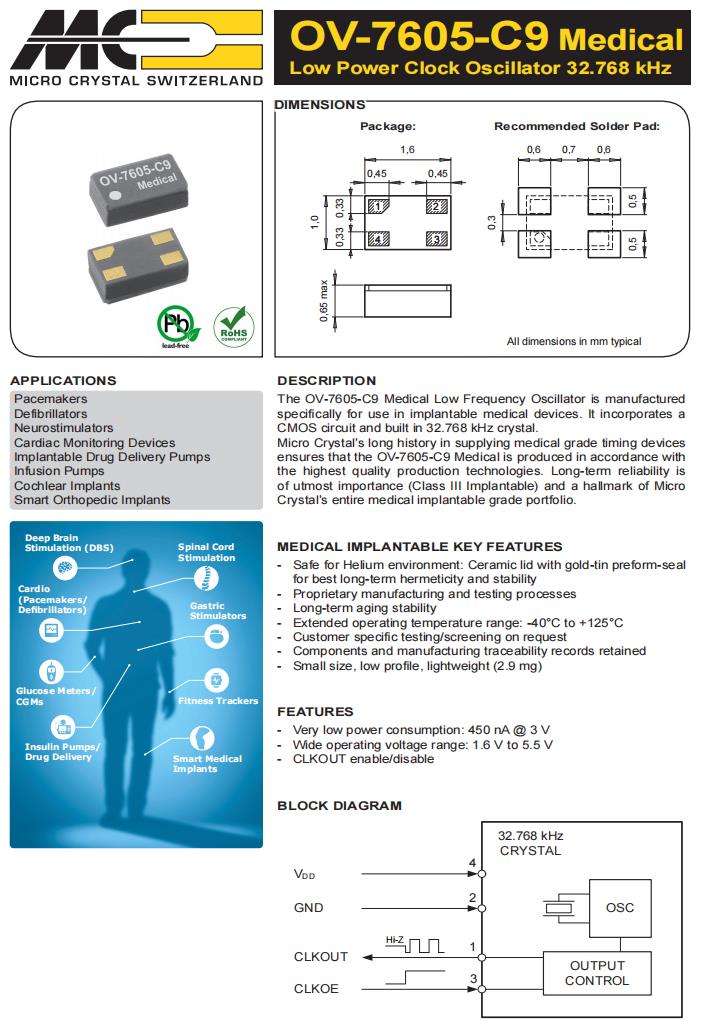

OV-7605-C9-T1-20ppm-TA-QM|植入式醫療設備專用晶振|32.768KHz晶振特點：
-氦環境安全:陶瓷蓋帶金錫預成型密封,為了最佳的長期密封性和穩定性
-專有制造和測試流程
-長期老化穩定性
-擴展工作溫度范圍:-40°C至+125°C
-客戶要求的特定測試/篩選
-保留部件和制造可追溯性記錄
-小尺寸、薄型、重量輕(2.9毫克)
-擴展工作溫度范圍:-40°C至+125°C
-客戶要求的特定測試/篩選
-保留部件和制造可追溯性記錄
-小尺寸、薄型、重量輕(2.9毫克)

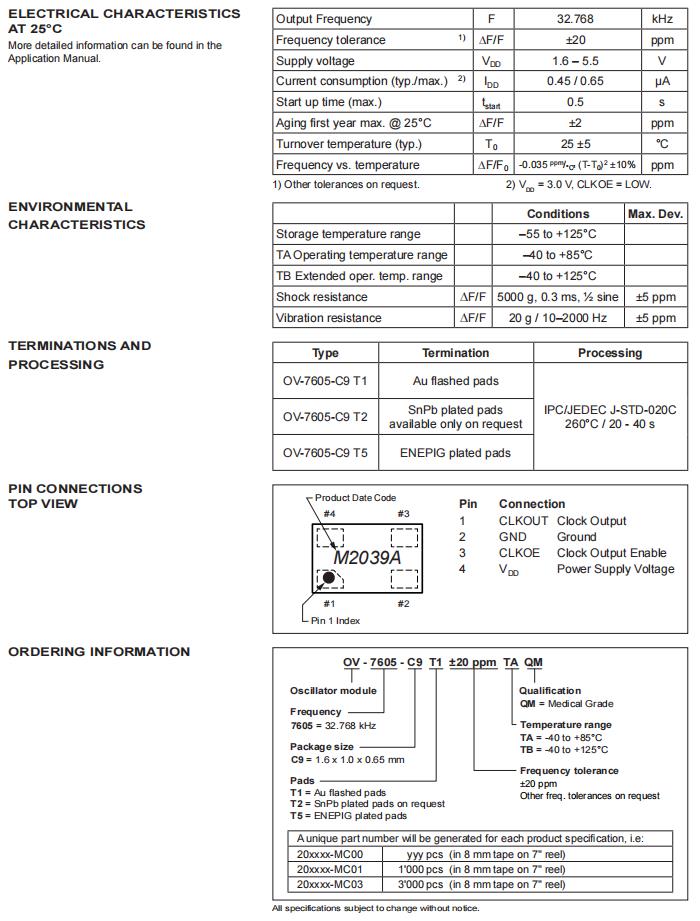

OV-7605-C9-T1-20ppm-TA-QM|植入式醫療設備專用晶振|32.768KHz晶振規格表
| 標準頻率 | FL | 32.768 | KHz |
| 負載 | CL | 12.5 | pF |
| 頻率容差 | ΔF/F | ±20 | ppm |
| 電源電壓 | VDD | 3.3 | V |
| 電流消耗(類型/最大值) | IDD | 0.45 / 0.65 | µA |
| 占空比(最小/最大) | 40 / 60 | % | |
| 儲存溫度 | T_stg | −55~+125 | °C |
| 工作溫度 | T_use | −40~+85 | °C |
| 啟動時間（最大） | tstart | 0.5 | S |
| 周轉溫度(典型值） | T0 | 25 ±5 | °C |
| 老化第一年 | ΔF/F | ±2 | ppm |
|
頻率溫度穩定性
|
ΔF/F0 | –0.035 ppm/ °C² (T - T0)2 ±10% | ppm |
.jpg)

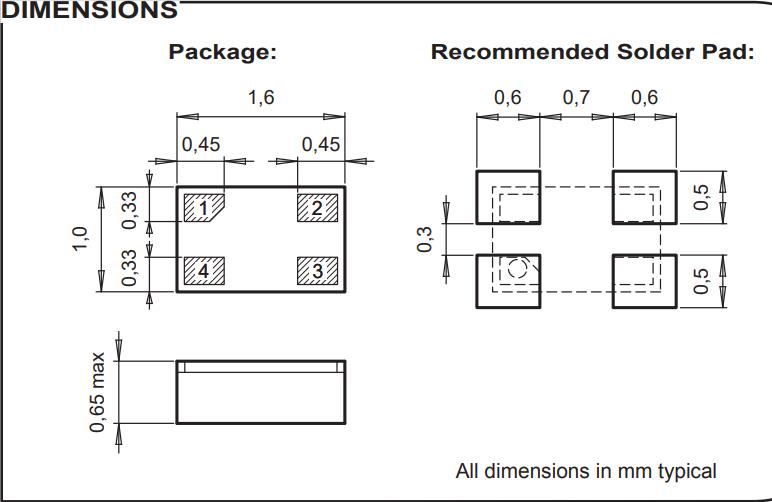

OV-7605-C9-T1-20ppm-TA-QM|植入式醫療設備專用晶振|32.768KHz晶振尺寸圖
| 制造商零件編號 | 制造商 | 描述 | 產品類型 |
| MS1V-T1K-32.768kHz-12.5pF-20PPM-TA-QC-Au | Micro 晶振 | 晶體 32.768 kHz 12.5 pF +/-20 PPM -40/+85C | Crystals |
| CM7V-T1A-32.768kHz-7pF-100PPM-TA-QC | Micro 晶振 | 晶體 32.768 kHz 7.0 pF +/-100 PPM -40/+85C | Crystals |
| CM8V-T1A-32.768kHz-9pF-20PPM-TA-QC | Micro 晶振 | 晶體 32.768 kHz 9.0 pF +/-20 PPM -40/+85C | Crystals |
| MS1V-T1K-32.768kHz-7pF-20PPM-TA-QC-Au | Micro 晶振 | 晶體 32.768 kHz 7.0 pF +/-20 PPM -40/+85C | Crystals |
| CC4V-T1A-32.768kHz-12.5pF-20PPM-TA-QC | Micro 晶振 | 晶體 32.768 kHz 12.5 pF +/-20 PPM -40/+85C | Crystals |
| CC5V-T1A-32.768kHz-12.5pF-20PPM-TA-QC | Micro 晶振 | 晶體 32.768 kHz 12.5 pF +/-20 PPM -40/+85C | Crystals |
| CC5V-T1A-32.768kHz-9pF-20PPM-TA-QC | Micro 晶振 | 晶體 32.768 kHz 9.0 pF +/-20 PPM -40/+85C | Crystals |
| CM7V-T1A-32.768kHz-7pF-20PPM-TA-QC | Micro 晶振 | 晶體 32.768 kHz 7.0 pF +/-20 PPM -40/+85C | Crystals |
| CM7V-T1A-32.768kHz-12.5pF-20PPM-TA-QC | Micro 晶振 | 晶體 32.768 kHz 12.5 pF +/-20 PPM -40/+85C | Crystals |
| CC7V-T1A-32.768kHz-12.5pF-20PPM-TA-QC | Micro 晶振 | 晶體 32.768 kHz 12.5 pF +/-20 PPM -40/+85C | Crystals |
| MS3V-T1R-32.768kHz-12.5pF-20PPM-TA-QC-Au | Micro 晶振 | 晶體 32.768 kHz 12.5 pF +/-20 PPM -40/+85C | Crystals |
| MS3V-T1R-32.768kHz-7pF-20PPM-TA-QC-Au | Micro 晶振 | 晶體 32.768 kHz 7.0 pF +/-20 PPM -40/+85C | Crystals |
| CC7V-T1A-32.768kHz-7pF-100PPM-TA-QC | Micro 晶振 | 晶體 32.768 kHz 7.0 pF +/-100 PPM -40/+85C | Crystals |
| CC7V-T1A-32.768kHz-9pF-20PPM-TA-QC | Micro 晶振 | 晶體 32.768 kHz 9.0 pF +/-20 PPM -40/+85C | Crystals |
| CM8V-T1A-32.768k-12.5pF-20PPM-TB-QA | Micro 晶振 | 晶體 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 | Crystals |
| CM8V-T1A-32.768k-9pF-20PPM-TB-QA | Micro 晶振 | 晶體 32.768 kHz 9.0 pF +/-20 PPM -40/+125C | Crystals |
| MS1V-T1K-32.768kHz-10pF-20PPM-TA-QC-Au | Micro 晶振 | 晶體 32.768 kHz 10.0 pF +/-20 PPM -40/+85C | Crystals |
| CC5V-T1A-32.768kHz-7pF-20PPM-TA-QC | Micro 晶振 | 晶體 32.768 kHz 7.0 pF +/-20 PPM -40/+85C | Crystals |
| CM8V-T1A-32.768kHz-12.5pF-20PPM-TA-QC | Micro 晶振 | 晶體 32.768 kHz 12.5 pF +/-20 PPM -40/+85C | Crystals |
| CM7V-T1A-32.768kHz-9pF-20PPM-TA-QC | Micro 晶振 | 晶體 32.768 kHz 9.0 pF +/-20 PPM -40/+85C | Crystals |
| CM8V-T1A-32.768kHz-7pF-20PPM-TA-QC | Micro 晶振 | 晶體 32.768 kHz 7.0 pF +/-20 PPM -40/+85C | Crystals |
| MS3V-T1R-32.768kHz-9pF-20PPM-TA-QC-Au | Micro 晶振 | 晶體 32.768 kHz 9.0 pF +/-20 PPM -40/+85C | Crystals |
| CM7V-T1A-Low-ESR-32.768kHz-9pF-20-TA-QC | Micro 晶振 | 晶體 32.768 kHz 9.0 pF +/-20 PPM LOW ESR | Crystals |
| CC7V-T1A-32.768kHz-7pF-20PPM-TA-QC | Micro 晶振 | 晶體 32.768 kHz 7.0 pF +/-20 PPM -40/+85C | Crystals |
| CM7VT1A-LowESR-32.768kHz-12.5pF-20-TA-QC | Micro 晶振 | 晶體 32.768 kHz 12.5 pF +/-20 PPM LOW ESR | Crystals |
| CM7V-T1A-Low-ESR-32.768kHz-7pF-20-TA-QC | Micro 晶振 | 晶體 32.768 kHz 7.0 pF +/-20 PPM LOW ESR | Crystals |
| CM7V-T1A-32.768k-12.5pF-20PPM-TA-QA | Micro 晶振 | 晶體 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 | Crystals |
| CM7V-T1A-32.768k-7pF-20PPM-TA-QA | Micro 晶振 | 晶體 32.768 kHz 7.0 pF +/-20 PPM AEC-Q200 | Crystals |
| CM7V-T1A-32.768k-7pF-100PPM-TB-QA | Micro 晶振 | 晶體 32.768 kHz 7.0 pF +/-100 PPM AEC-Q200 | Crystals |
| CC7V-T1A-32.768k-9pF-20PPM-TA-QA | Micro 晶振 | 晶體 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200 | Crystals |
| CM7V-T1A-32.768kHz-12.5pF-100PPM-TC-QC | Micro 晶振 | 晶體 32.768 kHz 12.5 pF 100 PPM -55/+125C | Crystals |
| CC4V-T1A-32.768kHz-12.5pF-10PPM-TA-QC | Micro 晶振 | 晶體 32.768 kHz 12.5 pF +/-10 PPM -40/+85C | Crystals |
| CM7V-T1A-32.768k-12.5pF-20PPM-TB-QA | Micro 晶振 | 晶體 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 | Crystals |
| CM7V-T1A-32.768k-9pF-20PPM-TB-QA | Micro 晶振 | 晶體 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200 | Crystals |
| CC7V-T1A-32.768k-7pF-20PPM-TB-QA | Micro 晶振 | 晶體 32.768 kHz 7.0 pF +/-20 PPM AEC-Q200 | Crystals |
| CM7V-T1A-32.768kHz-9pF-20PPM-TC-QC | Micro 晶振 | 晶體 32.768 kHz 9.0 pF +/-20 PPM -55/+125C | Crystals |
| CC7V-T1A-32.768k-12.5pF-20PPM-TB-QA | Micro 晶振 | 晶體 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 | Crystals |
| CM7V-T1A-Low-ESR-32.768kHz-6pF-20-TA-QC | Micro 晶振 | 晶體 32.768 kHz 6.0 pF +/-20 PPM LOW ESR | Crystals |
| CM7V-T1A-32.768kHz-6pF-20PPM-TA-QC | Micro 晶振 | 晶體 32.768 kHz 6.0 pF +/-20 PPM -40/+85C | Crystals |
| CM7V-T1A-32.768k-7pF-20PPM-TC-QA | Micro 晶振 | 晶體 32.768 kHz 7.0 pF +/-20 PPM AEC-Q200 | Crystals |
| CC7V-T1A-32.768k-9pF-100PPM-TC-QA | Micro 晶振 | 晶體 32.768 kHz 9.0 pF +/-100 PPM AEC-Q200 | Crystals |
| CM7V-T1A-32.768k-9pF-20PPM-TC-QA | Micro 晶振 | 晶體 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200 | Crystals |
| CC7V-T1A-32.768k-12.5pF-20PPM-TC-QA | Micro 晶振 | 晶體 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 | Crystals |
| CM7V-T1A-32.768kHz-6pF-10PPM-TA-QC | Micro 晶振 | 晶體 32.768 kHz 6.0 pF +/-10 PPM -40/+85C | Crystals |
| CC4V-T1A-32.768kHz-9pF-100PPM-TA-QC | Micro 晶振 | 晶體 32.768 kHz 9.0 pF +/-100 PPM -40/+85C | Crystals |
| CM8V-T1A-32.768kHz-6pF-20PPM-TA-QC | Micro 晶振 | 晶體 32.768 kHz 6.0 pF +/-20 PPM -40/+85C | Crystals |
| CM8V-T1A-32.768kHz-12.5pF-20PPM-TB-QC | Micro 晶振 | 晶體 32.768 kHz 12.5 pF +/-20 PPM -40/+125C | Crystals |
| CC4V-T1A-32.768kHz-7pF-20PPM-TA-QC | Micro 晶振 | 晶體 32.768 kHz 7.0 pF +/-20 PPM -40/+85C | Crystals |
| CM8V-T1A-32.768kHz-7pF-20PPM-TB-QC | Micro 晶振 | 晶體 32.768 kHz 7.0 pF +/-20 PPM -40/+125C | Crystals |
| CC4V-T1A-32.768kHz-9pF-20PPM-TA-QC | Micro 晶振 | 晶體 32.768 kHz 9.0 pF +/-20 PPM -40/+85C | Crystals |
| CM9V-T1A-32.768kHz-7pF-100PPM-TA-QC | Micro 晶振 | 晶體 32.768 kHz 7.0 pF +/-100 PPM -40/+85C | Crystals |
| CM9V-T1A-32.768kHz-7pF-20PPM-TA-QC | Micro 晶振 | 晶體 32.768 kHz 7.0 pF +/-20 PPM -40/+85C | Crystals |
| CC5V-T1A-32.768kHz-12.5pF-20PPM-TB-QC | Micro 晶振 | 晶體 32.768 kHz 12.5 pF +/-20 PPM -40/+125C | Crystals |
| CC5V-T1A-32.768kHz-7pF-20PPM-TB-QC | Micro 晶振 | 晶體 32.768 kHz 7.0 pF +/-20 PPM -40/+125C | Crystals |
| CM7V-T1A-0.3-32.768kHz-7pF-20PPM-TA-QC | Micro 晶振 | 晶體 32.768 kHz 7.0 pF +/-20 PPM 0.3mm | Crystals |
| CM7V-T1A-0.3-32.768kHz-9pF-20PPM-TA-QC | Micro 晶振 | 晶體 32.768 kHz 9.0 pF +/-20 PPM 0.3mm | Crystals |
| CM7VT1A-0.3-32.768kHz-12.5pF-20PPM-TA-QC | Micro 晶振 | 晶體 32.768 kHz 12.5 pF +/-20 PPM 0.3mm | Crystals |
| CM7V-T1A-100.000kHz-9pF-100PPM-TA-QC | Micro 晶振 | 晶體 100.000 kHz 9.0 pF +/-100 PPM -40/+85C | Crystals |
| CM7V-T1A-32.768kHz-12.5pF-10PPM-TA-QC | Micro 晶振 | 晶體 32.768 kHz 12.5 pF +/-10 PPM -40/+85C | Crystals |
| CM7V-T1A-32.768kHz-9pF-10PPM-TA-QC | Micro 晶振 | 晶體 32.768 kHz 9.0 pF +/-10 PPM -40/+85C | Crystals |
| CM9V-T1A-32.768kHz-12.5pF-20PPM-TA-QC | Micro 晶振 | 晶體 32.768 kHz 12.5 pF +/-20 PPM -40/+85C | Crystals |
| CM7V-T1A-32.768kHz-12.5pF-20PPM-TB-QC | Micro 晶振 | 晶體 32.768 kHz 12.5 pF +/-20 PPM -40/+125C | Crystals |
| CM7V-T1A-32.768kHz-7pF-20PPM-TB-QC | Micro 晶振 | 晶體 32.768 kHz 7.0 pF +/-20 PPM -40/+125C | Crystals |
| CC7V-T1A-32.768k-12.5pF-20PPM-TA-QA | Micro 晶振 | 晶體 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 | Crystals |
| CC7V-T1A-32.768kHz-12.5pF-10PPM-TA-QC | Micro 晶振 | 晶體 32.768 kHz 12.5 pF +/-10 PPM -40/+85C | Crystals |
| CC7V-T1A-32.768kHz-12.5pF-20PPM-TC-QC | Micro 晶振 | 晶體 32.768 kHz 12.5 pF +/-20 PPM -55/+125C | Crystals |
| CM9V-T1A-32.768kHz-9pF-20PPM-TA-QC | Micro 晶振 | 晶體 32.768 kHz 9.0 pF +/-20 PPM -40/+85C | Crystals |
| CM7V-T1A-32.768kHz-7pF-10PPM-TA-QC | Micro 晶振 | 晶體 32.768 kHz 7.0 pF +/-10 PPM -40/+85C | Crystals |
| MS1V-T1K-32.768kHz-9pF-20PPM-TA-QC-Au | Micro 晶振 | 晶體 32.768 kHz 9.0 pF +/-20 PPM -40/+85C | Crystals |
| MS1V-T1K-32.768kHz-6pF-20PPM-TA-QC-Au | Micro 晶振 | 晶體 32.768 kHz 6.0 pF +/-20 PPM -40/+85C | Crystals |
| CM7V-T1A-32.768kHz-12.5pF-20PPM-TC-QC | Micro 晶振 | 晶體 32.768 kHz 12.5 pF +/-20 PPM -55/+125C | Crystals |
| CM7V-T1A-32.768k-12.5pF-20PPM-TC-QA | Micro 晶振 | 晶體 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 | Crystals |
| CM8V-T1A-32.768k-12.5pF-20PPM-TA-QA | Micro 晶振 | 晶體 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 | Crystals |
| CC7V-T1A-32.768kHz-7pF-20PPM-TB-QC | Micro 晶振 | 晶體 32.768 kHz 7.0 pF +/-20 PPM -40/+125C | Crystals |
| CM8V-T1A-32.768kHz-9pF-20PPM-TB-QC | Micro 晶振 | 晶體 32.768 kHz 9.0 pF +/-20 PPM -40/+125C | Crystals |
| CM7V-T1A-32.768k-9pF-20PPM-TA-QA | Micro 晶振 | 晶體 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200 | Crystals |
| CM7V-T1A-32.768kHz-9pF-20PPM-TB-QC | Micro 晶振 | 晶體 32.768 kHz 9.0 pF +/-20 PPM -40/+125C | Crystals |
| CM7V-T1A-32.768k-12.5pF-10PPM-TA-QA | Micro 晶振 | 晶體 32.768 kHz 12.5 pF +/-10 PPM -40/+85C | Crystals |
| CM7V-T1A-32.768kHz-12.5pF-10PPM-TB-QC | Micro 晶振 | 晶體 32.768 kHz 12.5 pF +/-10 PPM -40/+125C | Crystals |
| CC7V-T1A-32.768k-9pF-20PPM-TC-QA | Micro 晶振 | 晶體 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200 | Crystals |
| CM7V-T1A-32.768kHz-9pF-10PPM-TB-QC | Micro 晶振 | 晶體 32.768 kHz 9.0 pF +/-10 PPM -40/+125C | Crystals |
| CC7V-T1A-32.768kHz-9pF-20PPM-TC-QC | Micro 晶振 | 晶體 32.768 kHz 9.0 pF +/-20 PPM -55/+125C | Crystals |
| CM8V-T1A-32.768kHz-7pF-100PPM-TA-QC | Micro 晶振 | 晶體 32.768 kHz 7.0 pF +/-100 PPM -40/+85C | Crystals |
| CM8V-T1A-32.768kHz-12.5pF-20PPM-TC-QC | Micro 晶振 | 晶體 32.768 kHz 12.5 pF +/-20 PPM -55/+125C | Crystals |
| CC7V-T1A-32.768kHz-12.5pF-100PPM-TA-QC | Micro 晶振 | 晶體 32.768 kHz 12.5 pF +/-100 PPM -40/+85C | Crystals |
| CM7V-T1A-32.768kHz-12.5pF-100PPM-TA-QC | Micro 晶振 | 晶體 32.768 kHz 12.5 pF +/-100 PPM -40/+85C | Crystals |
| CC7V-T1A-32.768kHz-9pF-100PPM-TA-QC | Micro 晶振 | 晶體 32.768 kHz 9.0 pF +/-100 PPM -40/+85C | Crystals |
| CC7V-T1A-32.768kHz-9pF-10PPM-TA-QC | Micro 晶振 | 晶體 32.768 kHz 9.0 pF +/-10 PPM -40/+85C | Crystals |
| CM7V-T1A-Low-ESR-32.768k-7pF-10-TB-QA | Micro 晶振 | 晶體 32.768 kHz 7.0 pF +/-10 PPM LOW ESR | Crystals |
| CC7V-T1A-100.000kHz-9pF-100PPM-TA-QC | Micro 晶振 | 晶體 100.000 kHz 9.0 pF +/-100 PPM -40/+85C | Crystals |
| CM7V-T1A-32.768kHz-9pF-100PPM-TA-QC | Micro 晶振 | 晶體 32.768 kHz 9.0 pF +/-100 PPM -40/+85C | Crystals |
| CM7V-T1A-32.768kHz-12.5pF-100PPM-TB-QC | Micro 晶振 | 晶體 32.768 kHz 12.5 pF 100 PPM -40/+125C | Crystals |
| CM7V-T1A-Low-ESR-32.768k-9pF-20-TB-QA | Micro 晶振 | 晶體 32.768 kHz 9.0 pF +/-20 PPM LOW ESR | Crystals |
| CC7V-T1A-32.768k-9pF-20PPM-TB-QA | Micro 晶振 | 晶體 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200 | Crystals |
| CC7V-T1A-32.768kHz-7pF-10PPM-TA-QC | Micro 晶振 | 晶體 32.768 kHz 7.0 pF +/-10 PPM -40/+85C | Crystals |
| CM7V-T1A-32.768k-9pF-100PPM-TC-QA | Micro 晶振 | 晶體 32.768 kHz 9.0 pF +/-100 PPM AEC-Q200 | Crystals |
| CC4V-T1A-32.768kHz-6pF-20PPM-TA-QC | Micro 晶振 | 晶體 32.768 kHz 6.0 pF +/-20 PPM -40/+85C | Crystals |
| CM8V-T1A-32.768kHz-9pF-100PPM-TA-QC | Micro 晶振 | 晶體 32.768 kHz 9.0 pF +/-100 PPM -40/+85C | Crystals |
| CC5V-T1A-32.768kHz-6pF-20PPM-TA-QC | Micro 晶振 | 晶體 32.768 kHz 6.0 pF +/-20 PPM -40/+85C | Crystals |
| CM8V-T1A-100.000kHz-9pF-100PPM-TA-QC | Micro 晶振 | 晶體 100.000 kHz 9.0 pF +/-100 PPM -40/+85C | Crystals |
| CM7V-T1A-32.768k-6pF-20PPM-TB-QA | Micro 晶振 | 晶體 32.768 kHz 6.0 pF +/-20 PPM AEC-Q200 | Crystals |
| MS1V-T1K-32.768kHz-12.5pF-10PPM-TA-QC-Au | Micro 晶振 | 晶體 32.768 kHz 12.5 pF +/-10 PPM -40/+85C | Crystals |
| CC1V-T1A-1.8432MHz-10pF-500PPM-TC-QC | Micro 晶振 | 晶體 1.8432 MHz 10.0 pF 500 PPM -55/+125C | Crystals |
| CC4V-T1A-32.768k-9pF-20PPM-TC-QA | Micro 晶振 | 晶體 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200 | Crystals |
| MS1V-T1K-32.768kHz-6pF-10PPM-TA-QC-Au | Micro 晶振 | 晶體 32.768 kHz 6.0 pF +/-10 PPM -40/+85C | Crystals |
| CC4V-T1A-1.000MHz-10pF-100PPM-TA-QC | Micro 晶振 | 晶體 1.000 MHz 10.0 pF +/-100 PPM -40/+85C | Crystals |
| CC4V-T1A-153.600kHz-9pF-30PPM-TA-QC | Micro 晶振 | 晶體 153.600 kHz 9.0 pF +/-30 PPM -40/+85C | Crystals |
| CC1V-T1A-307.20kHz-4pF-100PPM-TC-QC | Micro 晶振 | 晶體 307.200 kHz 4.0 pF 100 PPM -55/+125C | Crystals |
| CC1V-T1A-1.8432MHz-10pF-100PPM-TA-QC | Micro 晶振 | 晶體 1.8432 MHz 10.0 pF +/-100 PPM -40/+85C | Crystals |
| CC1V-T1A-1.8432MHz-10pF-100PPM-TC-QC | Micro 晶振 | 晶體 1.8432 MHz 10.0 pF 100 PPM -55/+125C | Crystals |
| CC4V-T1A-40.000kHz-12.5pF-20PPM-TA-QC | Micro 晶振 | 晶體 40.0000 kHz 12.5 pF +/-20 PPM -40/+85C | Crystals |
| CC4V-T1A-32.768k-12.5pF-20PPM-TB-QA | Micro 晶振 | 晶體 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 | Crystals |
| CC4V-T1A-32.768k-12.5pF-20PPM-TC-QA | Micro 晶振 | 晶體 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 | Crystals |
| CC4V-T1A-32.768kHz-9pF-10PPM-TC-QC | Micro 晶振 | 晶體 32.768 kHz 9.0 pF +/-10 PPM -55/+125C | Crystals |
| CC1V-T1A-32.768kHz-9pF-100PPM-TA-QC | Micro 晶振 | 晶體 32.768 kHz 9.0 pF +/-100 PPM -40/+85C | Crystals |
| CC1V-T1A-32.768kHz-9pF-20PPM-TA-QC | Micro 晶振 | 晶體 32.768 kHz 9.0 pF +/-20 PPM -40/+85C | Crystals |
| CC1V-T1A-1.8432MHz-10pF-500PPM-TA-QC | Micro 晶振 | 晶體 1.8432 MHz 10.0 pF +/-500 PPM -40/+85C | Crystals |
| CC1V-T1A-1.2288MHz-10pF-100PPM-TA-QC | Micro 晶振 | 晶體 1.2288 MHz 10.0 pF +/-100 PPM -40/+85C | Crystals |
| CC1V-T1A-1.2288MHz-10pF-100PPM-TC-QC | Micro 晶振 | 晶體 1.2288 MHz 10.0 pF 100 PPM -55/+125C | Crystals |
| CC1V-T1A-40.000kHz-9pF-30PPM-TC-QC | Micro 晶振 | 晶體 40.000 kHz 9.0 pF +/-30 PPM -55/+125C | Crystals |
| CC4V-T1A-32.768k-9pF-20PPM-TA-QA | Micro 晶振 | 晶體 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200 | Crystals |
| CC4V-T1A-32.768k-12.5pF-20PPM-TA-QA | Micro 晶振 | 晶體 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 | Crystals |
| MS1V-T1K-32.768kHz-8.2pF-20PPM-TA-QC-Au | Micro 晶振 | 晶體 32.768 kHz 8.2 pF +/-20 PPM -40/+85C | Crystals |
| CC4V-T1A-32.768kHz-12.5pF-20PPM-TC-QC | Micro 晶振 | 晶體 32.768 kHz 12.5 pF +/-20 PPM -55/+125C | Crystals |
| CC4V-T1A-32.768kHz-10pF-20PPM-TA-QC | Micro 晶振 | 晶體 32.768 kHz 10.0 pF +/-20 PPM -40/+85C | Crystals |
| CC1V-T1A-307.20kHz-4pF-100PPM-TA-QC | Micro 晶振 | 晶體 307.200 kHz 4.0 pF +/-100 PPM -40/+85C | Crystals |
| CC1V-T1A-32.768kHz-12.5pF-30PPM-TA-QC | Micro 晶振 | 晶體 32.768 kHz 12.5 pF +/-30 PPM -40/+85C | Crystals |
| CC1V-T1A-32.768kHz-9pF-30PPM-TA-QC | Micro 晶振 | 晶體 32.768 kHz 9.0 pF +/-30 PPM -40/+85C | Crystals |
| CC1V-T1A-32.768kHz-9pF-15PPM-TA-QC | Micro 晶振 | 晶體 32.768 kHz 9.0 pF +/-15 PPM -40/+85C | Crystals |
| CC1V-T1A-32.768kHz-9pF-30PPM-TC-QC | Micro 晶振 | 晶體 32.768 kHz 9.0 pF +/-30 PPM -55/+125C | Crystals |
| CC1V-T1A-1.000MHz-10pF-100PPM-TA-QC | Micro 晶振 | 晶體 1.000 MHz 10.0 pF +/-100 PPM -40/+85C | Crystals |
| CC1V-T1A-2.000MHz-10pF-100PPM-TA-QC | Micro 晶振 | 晶體 2.000 MHz 10.0 pF +/-100 PPM -40/+85C | Crystals |
| CC1V-T1A-40.000kHz-9pF-30PPM-TA-QC | Micro 晶振 | 晶體 40.000 kHz 9.0 pF +/-30 PPM -40/+85C | Crystals |
.jpg)
.jpg)
SHENZHEN YIJIN ELECTRONICS CO;LTD
電話：0755-27876565
手機：18924600166
QQ：857950243
郵箱：yijindz@163.com
網站：http://www.arucbtxo.cn
地址：廣東省深圳市寶安區新安107國道旁
銷售代表
