更多>>Raltron晶振,H10S-16.384-18-1030-TR,6G無線應用晶振
- 頻率：16.384MHz
- 尺寸：6.0×3.5mm
- 應 用： Raltron晶振,美國進口晶振,H10S石英晶體,H10S-16.384-18-1030-TR晶振,石英貼片晶振,6035mm晶振,頻率16.384MHz,負載18pF,頻率穩定性30ppm,工作溫度-10~60°C,高精度晶振,無鉛環保晶振,6G無線應用晶振,攝像機晶振,網站終...
-
-
.jpg)
Raltron晶振,H10S-16.384-18-1030-TR,6G無線應用晶振,Raltron晶振,美國進口晶振,H10S石英晶體,H10S-16.384-18-1030-TR晶振,石英貼片晶振,6035mm晶振,頻率16.384MHz,負載18pF,頻率穩定性30ppm,工作溫度-10~60°C,高精度晶振,無鉛環保晶振,6G無線應用晶振,攝像機晶振,網站終端晶振,通訊設備晶振.
Raltron晶振,H10S-16.384-18-1030-TR,6G無線應用晶振特點：
•低調
•精度高，穩定性好
•寬頻率范圍從8.00兆赫到200.00兆赫
Raltron晶振,H10S-16.384-18-1030-TR,6G無線應用晶振規格表
| 參數 | 數值 |
| 標準頻率 | 16.384MHz |
| 頻率容差 | 10ppm |
| 頻率穩定性 | 30ppm |
| 工作溫度 | −10~+60°C |
| 工作溫度 | −40~+85°C |
| 老化 | ±2ppm |
| 負載 | 18pF |
| 并聯電容 | 7pF Max |
| 激勵功率 |
1.0 ± 0.2 mA Typ
|
| 等效串聯電阻 | 130 OHMS MAX |
| 回流焊條件 |
SEE REFLOW SOLDER PROFILE
|
.jpg)

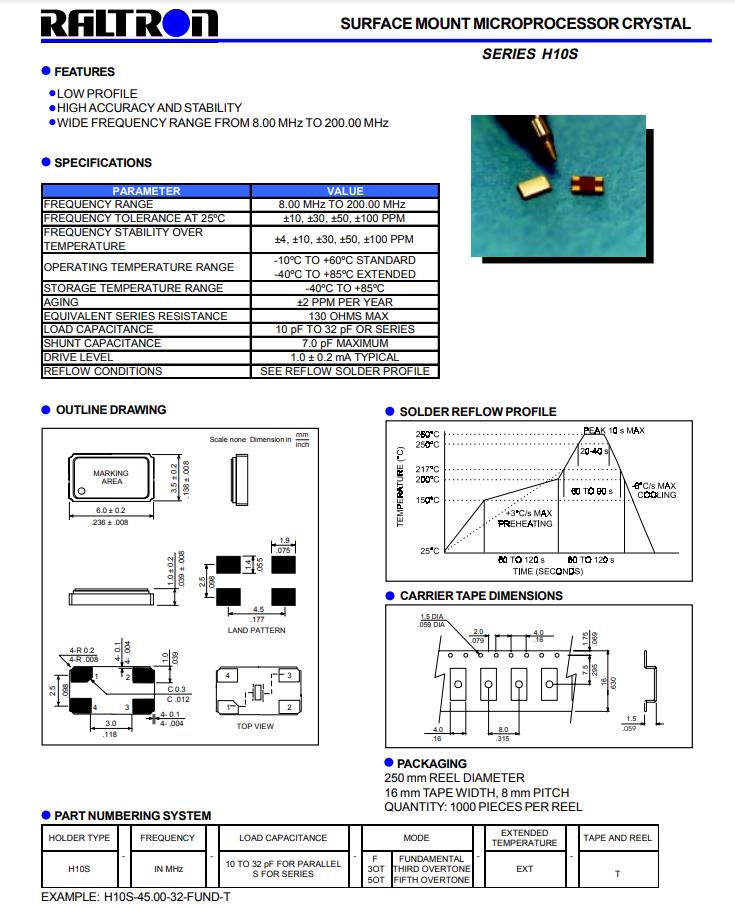

Raltron晶振,H10S-16.384-18-1030-TR,6G無線應用晶振尺寸圖
| Raltron原廠編碼 | 型號 | 頻率 | 尺寸 | 頻率偏差 | 頻率穩定度 | 負載 | 工作溫度 |
| H10S-13.560-10-1010-TR | H10S | 13.560MHz | 6.0 x 3.5mm | ± 10 ppm | ± 10 ppm | 10 pF | -10°C~+60°C |
| H10S-14.7456-16-1020-TR | H10S | 14.7456MHz | 6.0 x 3.5mm | ± 10 ppm | ± 20 ppm | 16 pF | -10°C~+60°C |
| H10S-16.000-20-3050-EXT-TR | H10S | 16.000MHz | 6.0 x 3.5mm | ± 30 ppm | ± 50 ppm | 20 pF | -40°C~+85°C |
| H10S-16.384-18-1030-TR | H10S | 16.384MHz | 6.0 x 3.5mm | ± 10 ppm | ± 30 ppm | 18 pF | -10°C~+60°C |
| H10S-18.432-18-EXT-TR | H10S | 18.432MHz | 6.0 x 3.5mm | ± 100 ppm | ± 100 ppm | 18 pF | -40°C~+85°C |
| H10S-20.000-18-1010-TR | H10S | 20.000MHz | 6.0 x 3.5mm | ± 10 ppm | ± 10 ppm | 18 pF | -10°C~+60°C |
| H10S-24.000-18-2020-EXT-TR | H10S | 24.000MHz | 6.0 x 3.5mm | ± 20 ppm | ± 20 ppm | 18 pF | -40°C~+85°C |
| H10S-25.000-18-F-EXT-TR | H10S | 25.000MHz | 6.0 x 3.5mm | ± 100 ppm | ± 100 ppm | 18 pF | -40°C~+85°C |
| H10S-26.000-18-F-1030-EXT-TR | H10S | 26.000MHz | 6.0 x 3.5mm | ± 10 ppm | ± 30 ppm | 18 pF | -40°C~+85°C |
| H10S-27.120-18-F-3050-TR | H10S | 27.120MHz | 6.0 x 3.5mm | ± 30 ppm | ± 50 ppm | 18 pF | -10°C~+60°C |
| H10S-28.000-18-F-1030-EXT-TR | H10S | 28.000MHz | 6.0 x 3.5mm | ± 10 ppm | ± 30 ppm | 18 pF | -40°C~+85°C |
| H10S-29.000-18-F-1030-EXT-TR | H10S | 29.000MHz | 6.0 x 3.5mm | ± 10 ppm | ± 30 ppm | 18 pF | -40°C~+85°C |
| H10S-30.000-18-F-1030-EXT-TR | H10S | 30.000MHz | 6.0 x 3.5mm | ± 10 ppm | ± 30 ppm | 18 pF | -40°C~+85°C |
| H10S-31.000-18-F-1030-EXT-TR | H10S | 31.000MHz | 6.0 x 3.5mm | ± 10 ppm | ± 30 ppm | 18 pF | -40°C~+85°C |
| H10S-32.000-18-F-1030-EXT-TR | H10S | 32.000MHz | 6.0 x 3.5mm | ± 10 ppm | ± 30 ppm | 18 pF | -40°C~+85°C |
| H10S-33.000-18-F-1030-EXT-TR | H10S | 33.000MHz | 6.0 x 3.5mm | ± 10 ppm | ± 30 ppm | 18 pF | -40°C~+85°C |
| H10S-34.000-18-F-1030-EXT-TR | H10S | 34.000MHz | 6.0 x 3.5mm | ± 10 ppm | ± 30 ppm | 18 pF | -40°C~+85°C |
| H10S-35.000-18-F-1030-EXT-TR | H10S | 35.000MHz | 6.0 x 3.5mm | ± 10 ppm | ± 30 ppm | 18 pF | -40°C~+85°C |
| H10S-36.000-18-F-1030-EXT-TR | H10S | 36.000MHz | 6.0 x 3.5mm | ± 10 ppm | ± 30 ppm | 18 pF | -40°C~+85°C |
| H10S-37.000-18-F-1030-EXT-TR | H10S | 37.000MHz | 6.0 x 3.5mm | ± 10 ppm | ± 30 ppm | 18 pF | -40°C~+85°C |
